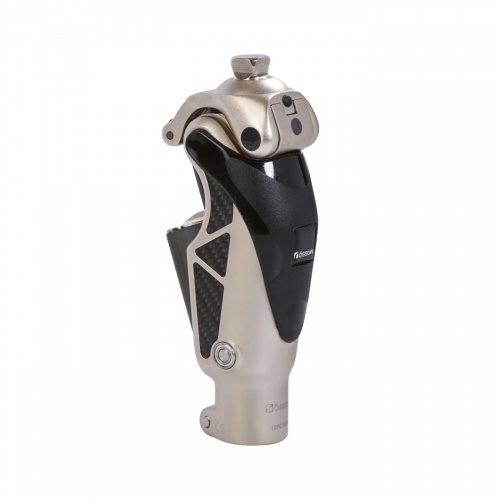

OP4 Knee
The OP4 Knee is a pneumatic, monocentric knee joint with brake function. Due to the finely adjustable brake, the joint can be adapted to the individual’s safety requirements.
• Braking behavior can be adjusted to suit the user
• Individually adjustable swing phase for a harmonious gait
• Highly acute flexion angle for more freedom of movement
• Kneecap provides additional protection for both the knee and
clothing
| Patient Profile | |
|---|---|
| Amputation Level: | Transfemoral |
| Impact Level: | Moderate to High |
| Maximum Patient Weight: | 100kg (220lbs) |
| Product Information | |
|---|---|
| Build Height: | 198mm |
| Weight of Knee: | 0.680kg |
| Flexion: | 145° |
