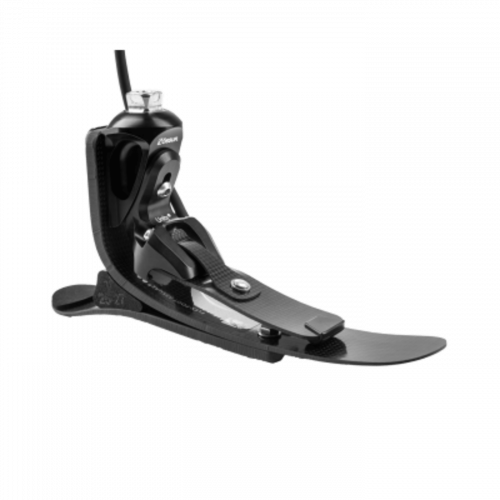

Flex-Foot Assure is an ideal first prosthesis, or a more permanent option for low active users.
Designed specifically for slower walkers, Flex-Foot Assure incorporates an active heel combined with a fulllength keel that work together to protect the vulnerable sound limb.
The proven design and simple fit of Assure allows basic ambulators to take advantage of premium technology matched to their needs.
Unity for Flex-Foot Assure is a sleeveless vacuum suspension system designed to stabilize volume fluctuations and maintain comfortable socket fit throughout the day.
It is specifically designed for the low to moderate active user and in combination with Seal-In technology, it provides secure suspension and volume management.
The lightweight foot incorporates an active heel combined with the fulllength keel that work together to protect the vulnerable sound limb.
Unity adds minimal weight, no extra build height to the prosthesis and does not interfere with the foot module dynamics.
|Amputation Level:||Transfemoral and Transtibial|
|Maximum Patient Weight:||136kg (300lbs)|
|Maximum Vacuum:||-23inHg (-600mmHg)|
|Normal Operating Pressure:||-15-18 inHg|
|Added System Weight:||104g w/ Pump, Socket Valve and Tube|
|Weight of Foot: (Size 27)||544g (19.2oz) w/ Pyramid and Foot Cover|
|Build Height: (Size 27)||125mm (4 15/16″) w/ Pyramid
and Foot Cover
|Heel Height:||10mm (3/8″)|
|Adapter Options:||Male Pyramid or Fiberglass Tube|
