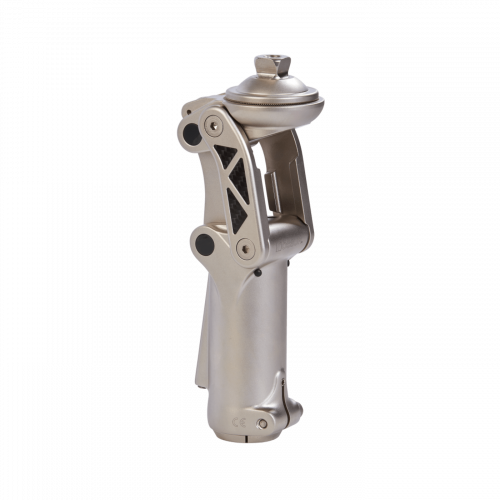

OP5 Knee
OP5 Knee is a pneumatic polycentric knee joint, whose swing phase profile can be adjusted to the user’s needs. Multiple socket connection options support use for different amputation levels.
• Individually adjustable swing phase for a harmonious gait
• Simple modification of the socket connector
• Higher ground clearance for a safer and more confident gait
• Highly acute flexion angle for more freedom of movement
| Patient Profile | |
|---|---|
| Amputation Level: | Transfemoral, Knee Disarticulation |
| Impact Level: | Moderate to High |
| Maximum Patient Weight: | 125kg |
| Product Information | ||||
|---|---|---|---|---|
| OP5 Knee with pyramid | OP5 Knee with IKF adapter | OP5 Knee with Loop adapter | OP5 Knee with 3-arm adapter | |
| Build Height (1): | 195mm | 210mm | 200mm | 205mm |
| Build Height (2): | 160mm | 175mm | 165mm | 170mm |
| Build Height (3): | 18mm | 33mm | 23mm | 26mm |
| Weight of Knee: | 770g | 900g | 785g | 870g |
| Flexion: | approx. 145° | approx. 145° | approx. 145° | approx. 145° |
